Automatic Linear Bottle Washing Machine

Automatic Linear Bottle Washing Machine

High Speed Linear Bottle Washing Machine: Model LI-LBW is most ideal for Round Bottles and finds wide application in pharma, food & beverages industries. The automatic loading arrangement facilities loading of bottles on to SS wire mesh conveyor through feed conveyor or bottles are pushed manually from feed table. This saves manpower as bottles are feed into pockets automatically. The automatic unloading mechanism consists of unloading bottle continues on to turn table (Optional).

SPECIAL FEATURES OF AUTOMATIC LINEAR BOTTLE WASHING MACHINE:

  • High-pressure spray nozzles ensure perfect wash of Bottles.
  • Interchangeable wash sequences.
  • Totally fabricated from SS Materials, including the basic frame.
  • No change parts required for washing of round bottle saving time of change over. (Change Parts require for Flat bottles & if change of neck size.)
  • All parts coming in contact with washing zones / jet are made from SS 316 materials.
  • The machine suitable for handling washes of round and flat glass bottle (With help of change parts).
  • Water re-cycling arrangement is possible as per customer’s need.
  • Machine is totally rigid and with stands continuous operation for long working. Hours without any trouble.
  • Higher capacity centrifugal pump to wash bigger container.
  • Third Tank & pump can be fitted (optional).
  • The machine is suitable for handling wash of different size of round bottles.
  • Water re – cycling arrangement is possible as per requirement.
  • The machine will be provided with SS pumps and SS tanks.
  • Totally fabricated from SS materials with basic frame.
  • Machine equipped with safety devices to ensure smooth and silent operation with high rated output.
  • Machine totally rigid and withstands continuous operation for long working hours without any trouble.
  • Washing chamber having various spray zones.
  • Spray duration is electrically controlled by magnetic valve.

UTILITIES REQUIRED OF AUTOMATIC LINEAR BOTTLE WASHING MACHINE:

  • Electrical supply :- 3 Phase + Neutral + Earthing
  • Electrical load :- 2 KW + 3KW for heater
  • Air Pressure: Minimum :- 6 bar pressure 5 CFM
Category:
Enquire Now

Additional information

High Speed Linear Bottle Washing Machine: Model LI-LBW is most ideal for Round Bottles and finds wide application in pharma, food & beverages industries. The automatic loading arrangement facilities loading of bottles on to SS wire mesh conveyor through feed conveyor or bottles are pushed manually from feed table. This saves manpower as bottles are feed into pockets automatically. The automatic unloading mechanism consists of unloading bottle continues on to turn table (Optional).

SPECIAL FEATURES OF AUTOMATIC LINEAR BOTTLE WASHING MACHINE:

  • High-pressure spray nozzles ensure perfect wash of Bottles.
  • Interchangeable wash sequences.
  • Totally fabricated from SS Materials, including the basic frame.
  • No change parts required for washing of round bottle saving time of change over. (Change Parts require for Flat bottles & if change of neck size.)
  • All parts coming in contact with washing zones / jet are made from SS 316 materials.
  • The machine suitable for handling washes of round and flat glass bottle (With help of change parts).
  • Water re-cycling arrangement is possible as per customer’s need.
  • Machine is totally rigid and with stands continuous operation for long working. Hours without any trouble.
  • Higher capacity centrifugal pump to wash bigger container.
  • Third Tank & pump can be fitted (optional).
  • The machine is suitable for handling wash of different size of round bottles.
  • Water re – cycling arrangement is possible as per requirement.
  • The machine will be provided with SS pumps and SS tanks.
  • Totally fabricated from SS materials with basic frame.
  • Machine equipped with safety devices to ensure smooth and silent operation with high rated output.
  • Machine totally rigid and withstands continuous operation for long working hours without any trouble.
  • Washing chamber having various spray zones.
  • Spray duration is electrically controlled by magnetic valve.

UTILITIES REQUIRED OF AUTOMATIC LINEAR BOTTLE WASHING MACHINE:

  • Electrical supply :- 3 Phase + Neutral + Earthing
  • Electrical load :- 2 KW + 3KW for heater
  • Air Pressure: Minimum :- 6 bar pressure 5 CFM

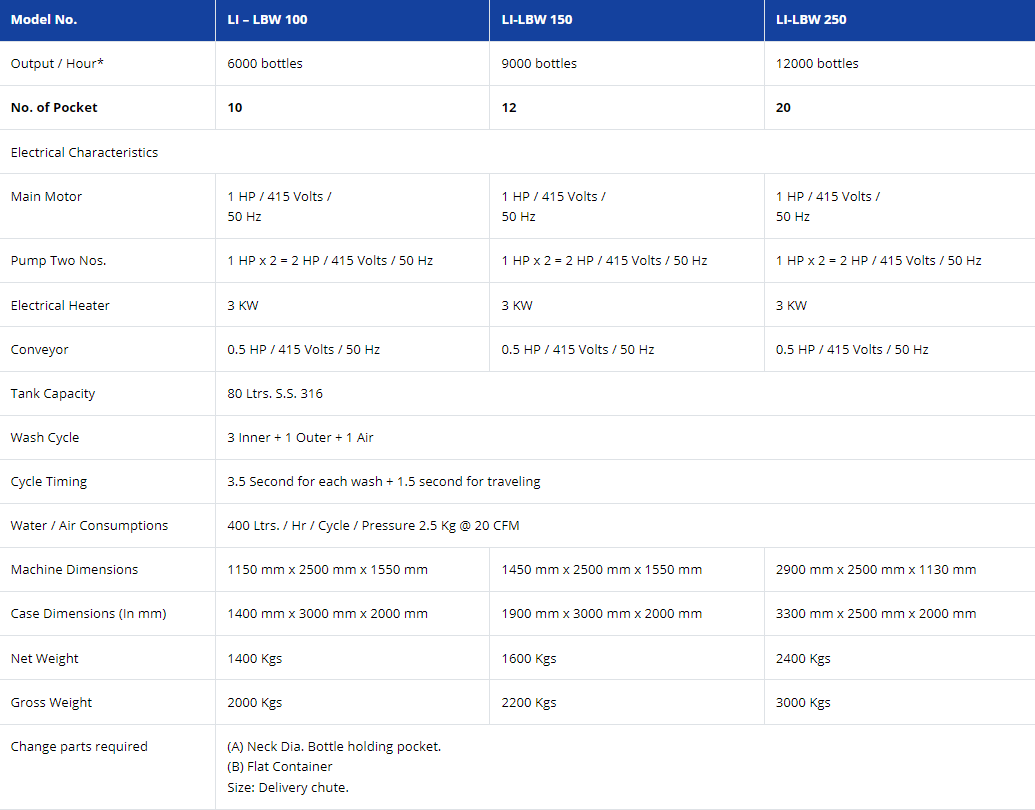

Specifications
